Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Name: Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence
Brand: XMESH
Price: 1 USD

Wholesale Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence from china suppliers

Brand Name : XMESH

Model Number : QJ-515

Certification : SGS

Place of Origin : Hebei, China

MOQ : 200pcs

Payment Terms : 30%TT in advance, Balance before loading

Supply Ability : 10000 pcs one month

Delivery Time : 15-25days

Packaging Details : loose packed or with steel pallets

Material : Galvanized steel core wire

Wire diameter : 4.0mm, 4.5mm, 5.0mm

Mesh : 50x150mm, 50x200mm

Finish : Powder coated

Color : Green, black, white, orange

Size : 2.5 x 1.8 m, 2.5 x 2.1 m, 3.0 x 2.0 m

Type : Fencing,Trellis & Gates,Welded Mesh

Feature : Easily Assembled,Eco Friendly,Rodent Proof

Frame material : Metal

Pressure treated wood type : Heat Treated

Surface treatment : Galvanized+PVC Coated

Application : Fence Mesh,Garden,Residential

Product name : 2D Double Wire Fence 868 Mesh Fence Panels Manufacture,Powder coating or hot dipped galvanized wire mesh fence

Mesh size : 50x100mm,75x150mm,200mm*50mm / 150mm*50mm/100mm*50mm

Usage : Protection,Garden Decoration,building,Used,Garden Fence/highway/airport

Width : 1500mm ~ 3000mm

Length : 2m/2.5m or according to your request

Contact Now

2.5m Width Vinyl Electrostaic Paint Powder Galvanized 3D Curved Welded Mesh Fence

Product descriptions

1.Brief introduction of 3D curved fence

1.Special technique: refined design, wide applications, convenient installation, it is very favorable for the users. Using high quality steel as raw material, the welded panel body is very plain and strong resistance strength. It enjoys the characteristics of corrosion-resisting, durable and withstanding outdoor exposure

2.Material: low carbon steel wire or stainless steel wire

3.Feature:long-distance protections; adjustable safety standards; suitable for difficult grounds and topography; high mechanical performance due to heavy steel structure; European Quality Standards; low cost structure; local construction participation

4.Applications:well suitable for a wide range of applications, such as for enclosing commercial grounds, lawn, road, freight yards, sport fields, airports and public districts

5.Common specifications:

Specifications (H x W): 800, 1000, 1200, 1500, 1600, 1800, 2000 x 3000mm; double layers 2400, 2600 x 2800 x 3000mm

Corner post: 48 x 2.5

Wire dia: 3mm, 4mm,4.5mm,5mm

Hole: 50 x 150mm, 50 x 200mm, 75 x 250mm

2.Specification of curved fence

Fence panel specification
Panel size (height x length)	Wire dia	Mesh size	Surface treatment	Folds ( or no folds as your request)
1.03m	3mm-6mm	50x75mm 50x100mm 50x150mm 50x200mm 75x100mm 55x200mm 60x150mm Or as your request	1. Electro GI+PVC coated 2. Electro GI+PVC painting(Spraying) 3. hot-dipped GI only 4. Hot-dipped GI +PVC coated or painting	2
1.23m				2
1.5m				2 or 3
1.53m				2 or 3
1.7m				3
1.73m				3
1.8m				3 or 4
1.93m				3 or 4
2.0m				4
2.03m				4
2.4m				4

Post specification
post items	Post dia	Post thickness	Post length
Square post	40x60mm or 60x60mm	1.2-3mm	1.5m-2.9m
Peach shape post	50x70mm or 70x100mm
Round post	38mm, 40mm, 50mm,70mm

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

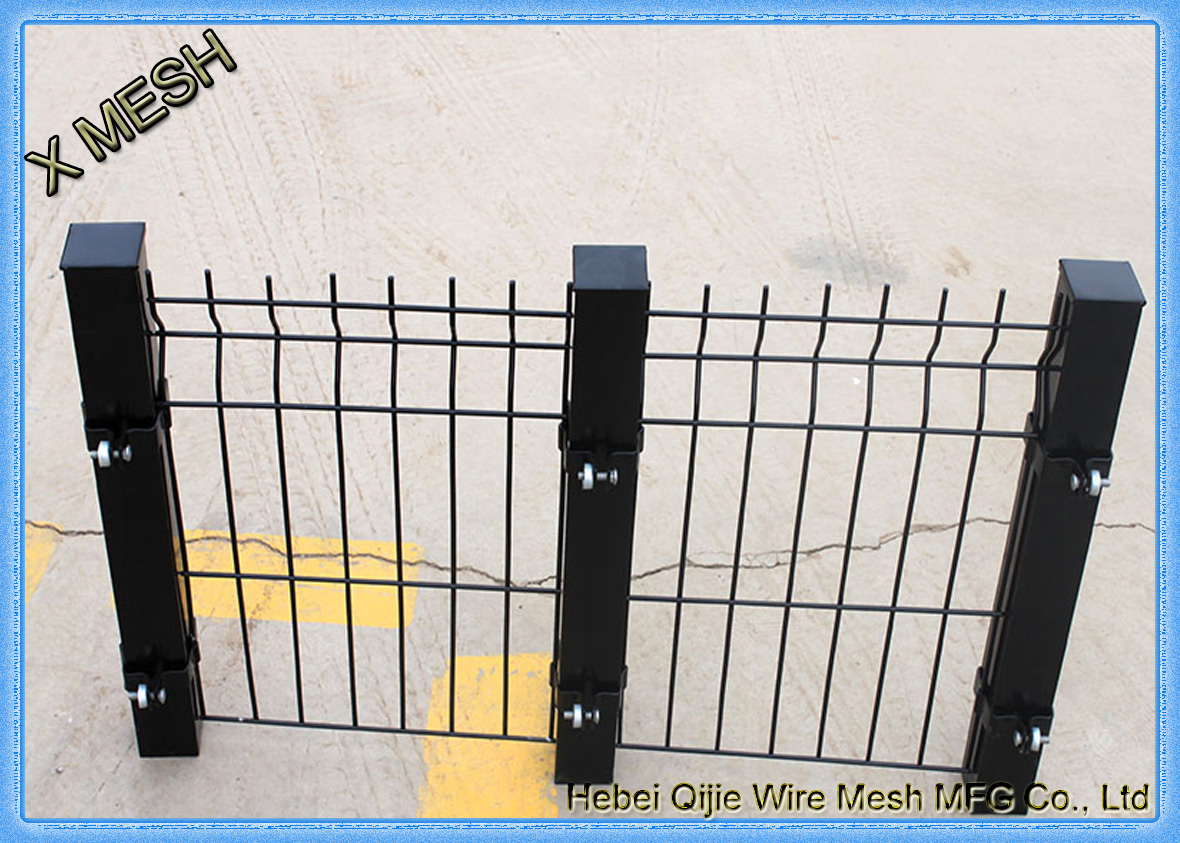

Post install of 3d curved mesh fence:

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Peach post

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

square post

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Rectangular post

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Round Post

Features of 3D security fence

High strength.
Corrosion and rust resistance.
Weather resistance.
Various colors for choice.
Durable and long service life.
Different installation types.
Can suit different installation environments.
Prevent intruders from entering the unwanted areas.

Applications of 3D security fence

The 3D security fence can supply high security for several applications and places, such as:

Airport.
Highway.
Railway.
Parking lot.
Parks.
Residences.
Factories.

Warehouse.
Garden.
Hospital.
Military sites.
Commercial sites.
Construction sites.

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Square Post Power Coated Welded Wire Fence Steel-P0001

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Peach Post Perimeter Coated Welded Wire Fence Steel-P0002

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Perimeter Coated Welded Wire Fence Steel-P0003

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Perimeter Coated Welded Wire Fence Steel-P0004

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Perimeter Coated Welded Wire Fence Steel-P0005

Vinyl Electrostaic Paint Curved Metal Fence Powder Galvanized welded wire fence

Perimeter Coated Welded Wire Fence Steel-P0006
