Hot Dipped Galvanized 9 Gauge Brick Wall Reinforcing Mesh
Masonry mesh, also called masonry wall reinforced mesh, is used for concrete construction reinforcement, normally used for the wall reinforcement. It is a welded and fabricated steel reinforcing structure which is laid in the bed joint to strengthen masonry panels without thickening the wall. It can prevent or reduce cracking in walls by bonding the masonry units together so as to strengthen the masonry panel where it is installed.
Product Specification

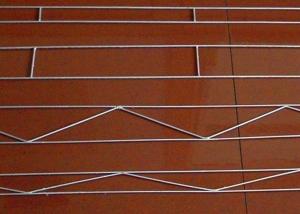

Ladder mesh
- Material: Low carbon steel wire, stainless steel wire, galvanized steel wire. Welded before electric-galvanized.
Welded after electric-galvanized.
Welded before hot dipped galvanized.
Welded after hot dipped galvanized.
Welded by stainless steel wire.
Galvanized steel, stainless steel for Expanded Metal Reinforcement

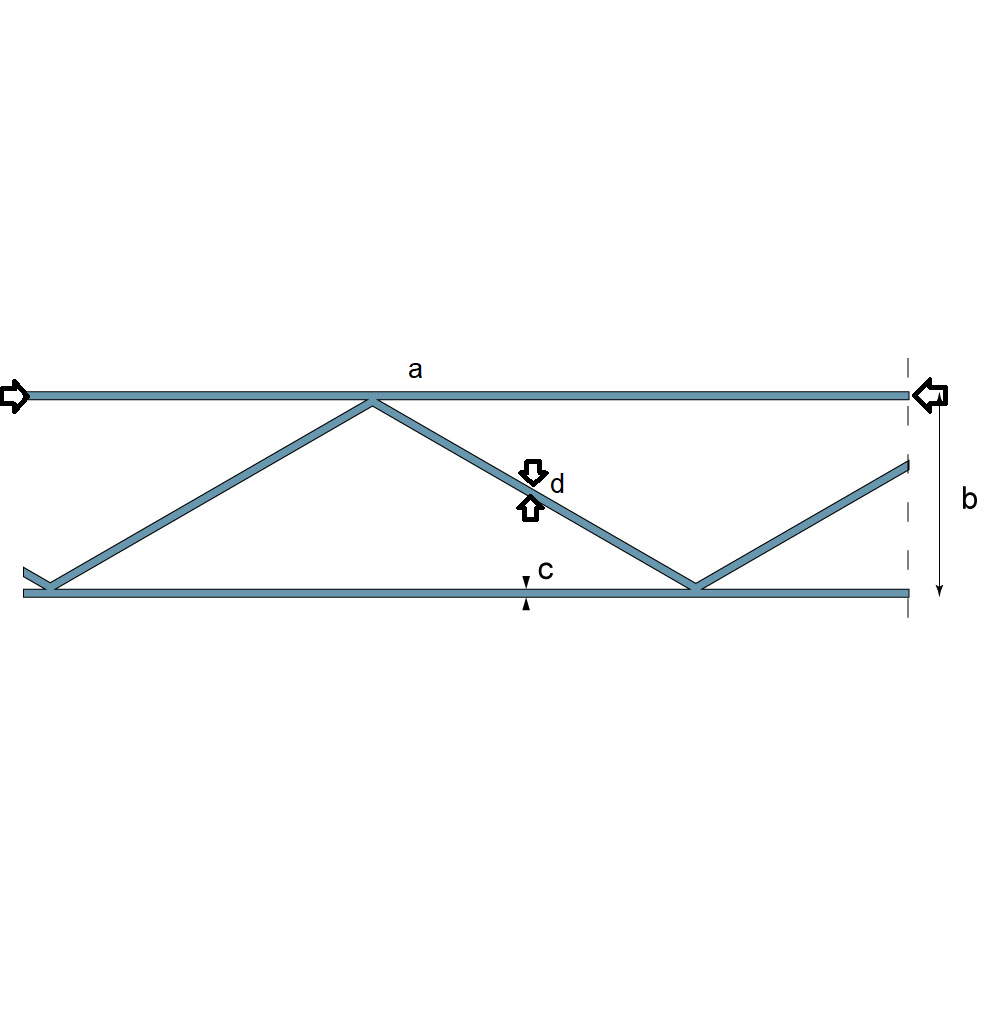

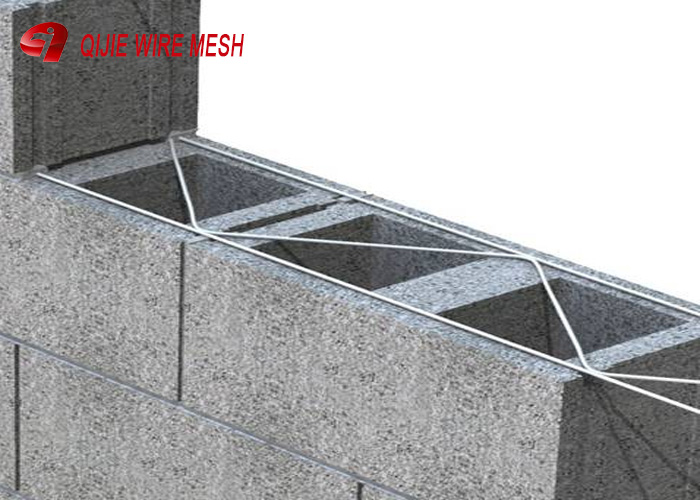

Truss mesh reinforcement
- Ladder mesh width: 4" – 16".
- Light ladder mesh: wire 9 ga. side rods × 9 ga. cross rods.
- Heavy ladder mesh: 3/16" side rods × 9 ga. cross rods.
- Super heavy duty ladder mesh: 3/16" side rods × 3/16" cross rods.
- Standard length: 10' (3.05m).

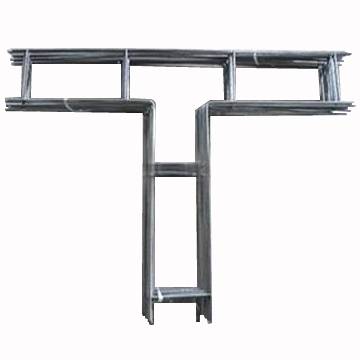

T shape masonry mesh
- Wire diameter: 2.5mm - 8.0mm.
- Typical use: it can be used for brick wall corner reinforcement because of its typical T shape.
Brick welded mesh
- Wire diameter: 2.5mm - 8.0mm.
- Length: as your requirement.
- Typical use: in rolls, it can be cut and bent easily.

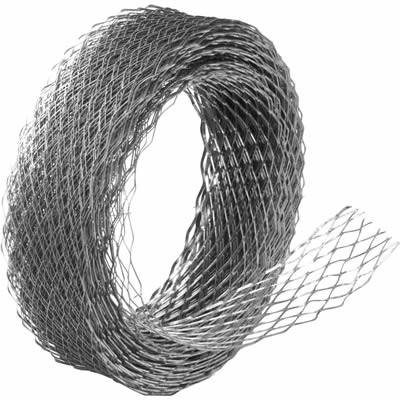

Expanded Metal Reinforcement
- SWD x LWD: 15x25mm
- Width: 65mm, 100mm, 175mm, 225mm, 300mm
- Length: 20m
Features
- High rigidity, strength and stability.
- Welding spots of warp wire and weft wire are on the same surface.
- Continuous length of joint reinforcement.
- Corrosion and rust resistant.
- Durable and long service life.
Packaging & Delivery
- 50 pieces per bundle, 20 bundles per pallet. (North America market)
- 25 pieces per bundle, 40 bundles per pallet. (Europe market)
Table 1: Masonry Wall Reinforced Mesh Specifications | Item | Standard Length | Width | Finishes |
| WRMS-1 | 10' (3.05 m) | 2" (50 mm) | Uncoated
Electro Galvanized
Hot Dipped Galvanized
After Fabrication
Stainless Steel |
| WRMS-2 | 4" (100 mm) |
| WRMS-3 | 6" (150 mm) |
| WRMS-4 | 8" (200 mm) |
| WRMS-5 | 10" (250 mm) |
All ladder mesh products conform to:
ASTM A641 - (Electro galvanized )
ASTM A153 Class B2 - (Hot dipped after fabrication)
ASTM A 82 - (Cold drawn steel wire)
Tensile Strength:80,000 PSI;Yield Point:70,000 PSI minimum; Reduction of Area:30 %.
ASTM A951-96 - (Masonry wall reinforcing)
ASTM 580 Type 304 - (Stainless steel)
Ladder mesh reinforcement also called Brick Wall Reinforcement Mesh is welded wire sheet for reinforced masonry construction. It is used in building surface, wall, ground, bridge, bank and airport. And its feature is that welding spots of warp wire and weft wire are on the same surface.
Wire Diameter: 2.5-6.0 mm
Width: 5cm-27cm
Length: 3mm.
Spacing: 40cm
Surface Treatment of Ladder Mesh: Can be divided into five types:
Welded after hot dipped galvanized;
Welded after electro galvanized;
Welded before electro galvanized;
Welded before hot dipped galvanized;
Welded by stainless steel wire.
General Technical Information:
Weight: 2kg-10kg.
Usage: Masonry wall construction.
Materials Available: hot dipped galvanized steel, electro galvanized steel or stainless steel. Wire diameter: from 2.5mm to 6mm.
Truss Mesh Structure Width: 5cm, 10cm, 15cm, 20cm.
Structure Length: 3mm.
Wire Spacing: 40cm.
PACKING INFORMATION:
- Packed 500' per bundle (50 pcs - 10' long)
- Corners and Tees packed 25 pcs per bundle
Benefits:
- Greatly reduces cracking that can arise from thermal stresses. This enhances resistance to water penetration, as cracks are controlled
- Increases lateral flexural strength
- Bonds exterior and interior masonry wythes together in composite or cavity walls. Also bonds masonry at intersecting walls and corners
- Increases elasticity and performance of masonry walls under various stresses
Features:
- Butt-welding of cross rods to longitudinal rods (not more than 16”o.c.). This construction enhances bonding capabilities, eliminates projection of cross rods beyond the specified width of reinforcement, and prevents excessive build up of wire in limited mortar joints
- Continuous deformation along each longitudinal rod for superior bonding performance
- Fabricated in conformance with ASCE/ACI 530 building code requirements for masonry structures and ASTM A 951
Applications
- Block slab structure reinforcing.
- Hollowed slabs reinforcing.
- Building wall reinforcing.
- Support wall reinforcing.
- Concrete ground reinforcing.
- Bridge reinforcing.
- Bank reinforcing.
- Airport reinforcing.
|
