11.5 Gauge Green PVC Coated Galvanized Chain Link Fence
Chain link mesh netting is made of woven steel wire, which is one of the most commonly used and versatile of all the fencing fabrics. It is normally available in a variety of wire gauges and mesh sizes to suit individual applications. All chain link rolls come complete with line wires and with knuckled edges. Barbed (protruding) edges increase the security of the fencing and are available to order.
Chain link fence is Widely using Simple installation Price Valuable Good Anti- corrosion

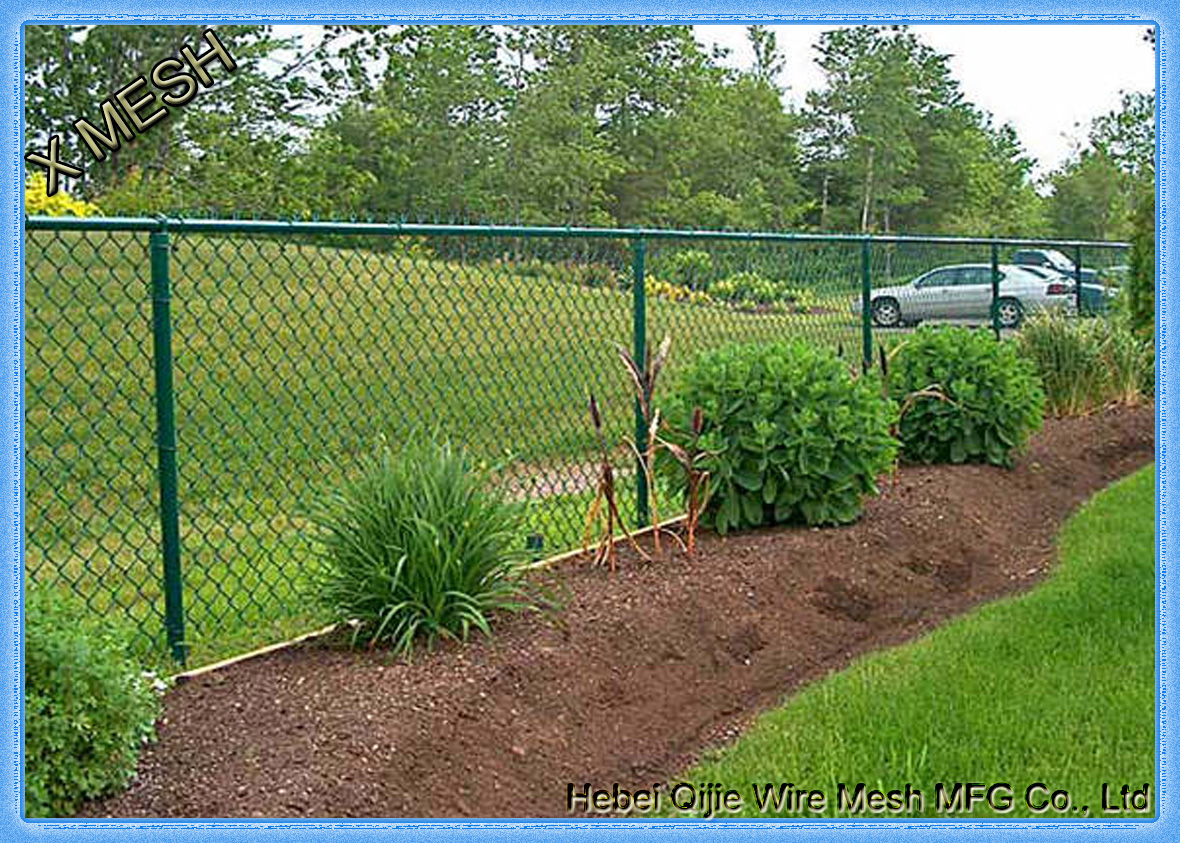

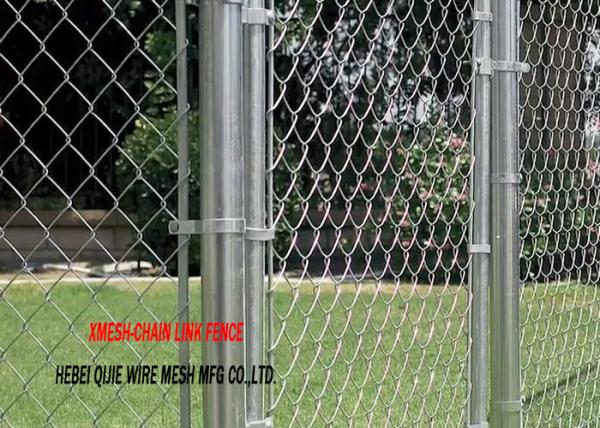

Chain link fence is made from galvanized or pvc coated iron wire, to fix with posts and fittings to build a chain link fence system. It is widely use for Yard, Garden, Playgrounds, School court fence, Airport fencing and so on.
SurfaceTreatment: galvanized , here are two kinds of galvanized chain link, GBW or GAW: galvanized before weaving (GBW) or galvanized after weaving (GAW). The vast majority on the market today is galvanized after weaving. The second is PVC Coated, the common color is green, black etc. The third is aluminium or stainless steel.
Specification:
Wire dia: 0.5mm-5.0mm
Mesh size: 1 inch, 1.5 inch, 2 inch, 2.25 inch, 2.4 inch, 2.5 inch , 3 inch, 4 inch,
Width: 0.9m - 2.5m
Length:10m, 20m, 25m, 30m or 50m
Color: green, white, black etc
Chain Link Fence
| Surface Treatment | Min. | Max. |
| Common Galvanization | 40 g/m2 | 70 g/m2 |
| Light Galvanization | 20 g/m2 | 35 g/m2 |
| PVC coated | 400 microns | 600 microns |
Green Chain Link Fence Popular Specification
| Wire Dia. (mm) | Mesh size (mm) | Height
(m) | Length
(m) |
| 1.8/2.5 2.0/3.0 2.5/3.5 3.0/4.0 3.5/4.5 4.0/5.0 | 50x50 55x55 60x60 75x75 40x40 30x30 | 1.0 1.2 1.5 1.8 2.0 2.5 | 15m/roll 12m/roll 20m/roll 25m/roll 30m/roll |
| Any customized sizes are available too. |
Clips are available:
| Standing Post | Dia. 60mm, 48mm, 76mm, 83mm, 96mm, 101mm |
| Corner/Strength Post | Dia. 76mm, 83mm, 96mm, 101mm |
| Support tubes | Dia. 38mm, 32mm, 40mm |
| Top/bottom rails | Dia. 38mm, 32mm, 40mm |
| Clamps | Corner use, Common use, End use |
| Wire Strainer | For straight wires |
| Straight wire | 2.5/3.5mm, 2.8/3.8mm, 3.0/4.0mm |
| Tie Wires | 1.5/2.0mm, 1.7/2.2mm |
As a professional chain link fence manufacturer, we can supply you high quality products. Welcome to contact!
What's Application of chain link fence panels sale?
1) Ulility extensive rearing chickens, ducks, geese, rabbits and zoo fence.
2) Mechanical protection, highway divider, sports venues fence, the road network of green belt protection.
3) Protect and support the seawall, hillsides, Highways and Bridges
4) Reservoirs and other flood control and flood Civil Engineering
